Model: UC8000
Podcast AI Audio Mixer | MicLIVE™ 6-CH
Overview
- All-in-one design simplifies audio mixing workflow for podcasting – offers up to 6-channel audio inputs, DSP and AD / DA converter, and adds audio up to 24-bit / 96 kHz to any USB-C-enabled laptop or tablet

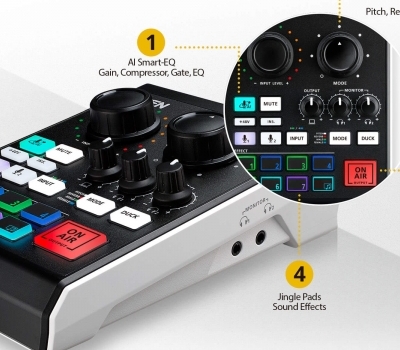

- The industry’s first AI-optimized audio mixer – enhances microphone audio quality with enhanced acoustic models, SmartEQ, so anyone can have a real-time, high-quality recording
- Jingle pads save up to 8 sound samples that can be customized from audio sources from a computer, microphone, and other audio inputs for a professional radio programming experience

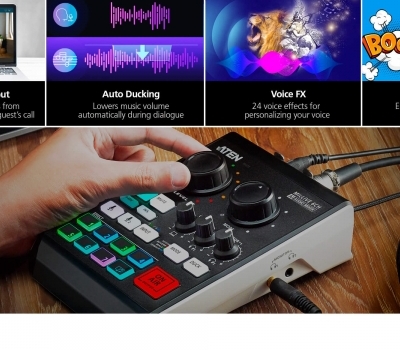

- The auto ducking function lowers background music anytime one speaks, ensuring the speaker’s voice is always heard, loud and clear, during broadcasting
Specifications
| Audio Inputs | |

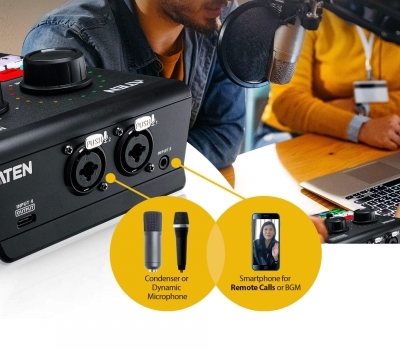

| Interfaces | XLR Combo: 2x XLR-3-31(1:GND, 2:HOT, 3:COLD) or 6.3mm (1/4) standard TRS jack ( T:HOT, R: COLD, S:GND ) Line-in: via 1/8” 4-pole TRRS phone female( T: Left, R: Right, R: GND, S: MIC. CTIA standard ) USB Audio-in: via USB TYPE-C |
| Audio Outputs | |
| Interfaces | Line-out: via 1/8” 4-pole TRRS phone female ( T: Left, R: Right, R: GND, S: MIC. CTIA standard ) USB Audio-out: via USB TYPE-C Headphone Monitoring: 2x 1/8 TRS phone female |
| Audio Sampling | 24-bit/96kHz |

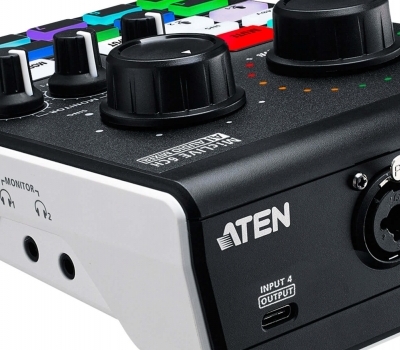

| Connection | 1x USB TYPE-C female , USB bus-powered |
| Microphone Inputs | |
| Frequency Response | 20Hz - 20kHz |
| Dynamic Range | 90dB |
| THD N | -82dB |
| Maximum Input Level | 12.5mVrms |
| Gain Range | 40dB (For Dynamic Microphone), 30dB (For Condenser Microphone ) |
| Impedance | 3KΩ (Typ) |
| Phantom power | 48VDC |
| Noise EIN | -128dBu or less |
| Instrument Inputs | |
| Frequency Response | 20Hz - 20kHz |
| Dynamic Range | 82dB |
| THD N | -80dB |
| Maximum Input Level | 440mVrms |
| Impedance | 1MΩ |
| Line Inputs | |
| Frequency Response | 20Hz - 20kHz |
| Dynamic Range | 95dB |
| THD N | -90dB |
| Maximum Input Level | 1Vrms |
| Impedance | 2.5KΩ (Typ) |
| Line Outputs | |
| Frequency Response | 20Hz - 20kHz |
| Maximum output Level | 1Vrms |
| Impedance | 200Ω |
| Headphone Outputs | |
| Frequency Response | 20 Hz - 20 kHz |
| Maximum output Level | 2Vrms |
| Impedance | 10Ω |
| Digital Audio | |
| ADC Dynamic Range | 92dB |
| DAC Dynamic Range | 95dB |
| Maximum Input Level | 4 dBu |
| Environmental | |
| Operating Temperature | 0–40°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–80% RH, Non-condensing |

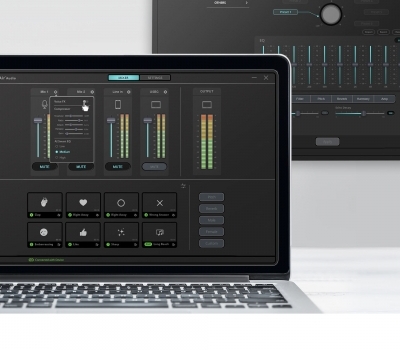

| OS Support | System requirements for PC and Mac: • Intel i3-series 2 GHz multicore processor (or AMD , Apple M1 equivalent) or faster • 2 GB RAM (8 GB or more recommended) • USB-C™ interface with USB 3.0 or higher compatibility • Windows 10 or higher , Mac OS® 10.11 or higher System requirements for iPads: • iPad Pro (3rd gen or later) • iPad Air (4th gen or later) iPad Mini (6th gen or later)with USB-C™ interface • iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen) • iPad Mini (5th gen) with phone Jack or adatper OnAir-Audio Software: -Windows 10 or higher, 64-bit -Mac OS 10.13 or higher, 64-bit |
| Power Consumption | DC5V:2.55W:12BTU |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.42 kg ( 0.93 lb ) |
| Dimensions (L x W x H) | 13.05 x 18.09 x 6.27 cm (5.14 x 7.12 x 2.47 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
