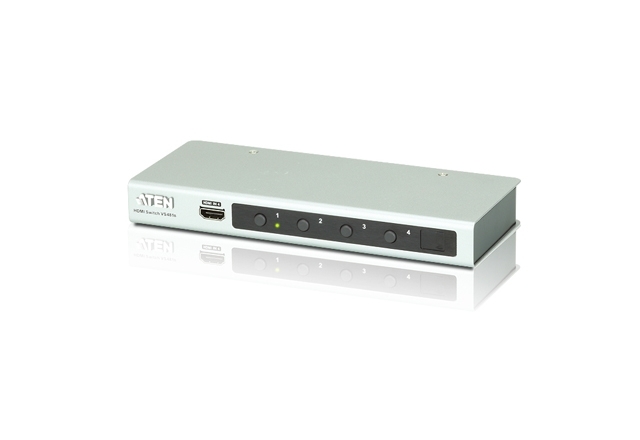

Model : VS481B
4-Port 4K HDMI Switch
- Allows up to four HDMI A/V sources to be connected to one HDMI display
- HDMI (3D, Deep Color, 4kx2k); HDCP 2.2 compatible
- Supports 340MHz bandwidth for ultrahigh 4kx2k video

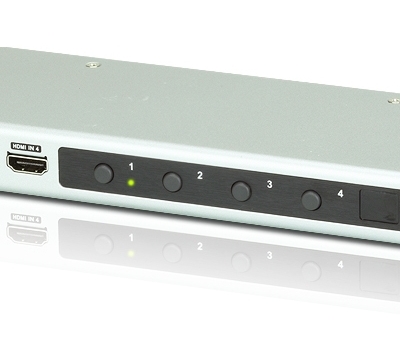

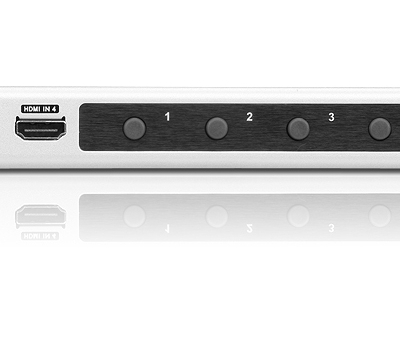

- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
Specifications
| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 3m @3840x2160@30 (4:4:4) |
| Video Output | |

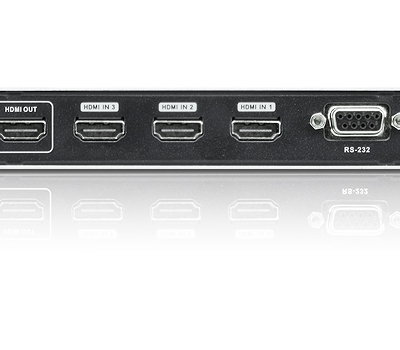

| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 15m @3840x2160@30 (4:4:4) |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Connectors | |
| Power | Connector: 1 x DC Jack |
| Power Consumption | DC5V:1.76W:8BTU |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.48 kg ( 1.06 lb ) |
| Dimensions (L x W x H) | 20.00 x 8.25 x 2.50 cm (7.87 x 3.25 x 0.98 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
