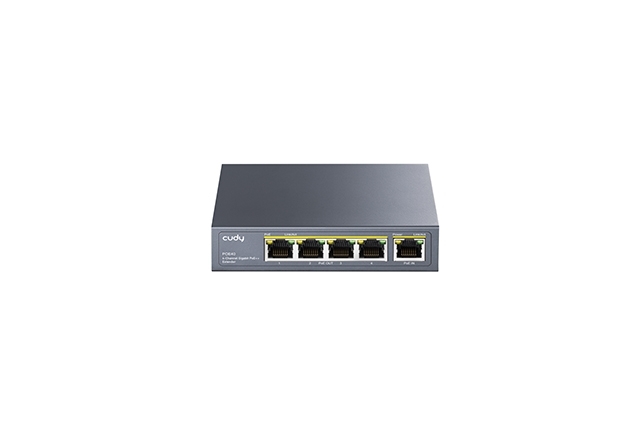

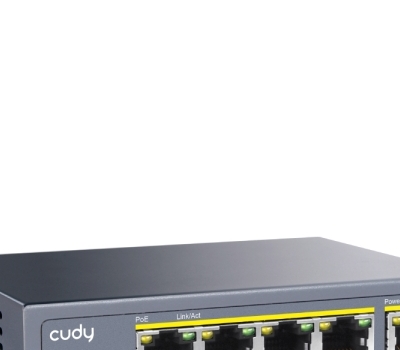

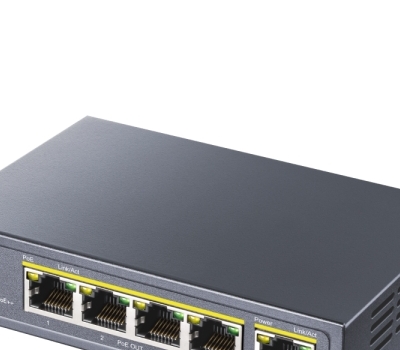

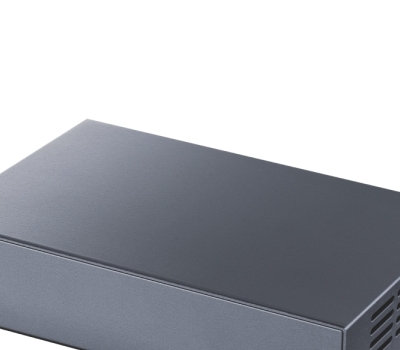

Model: POE40
4-Channel Gigabit POE Extender
Features:
- IEEE802.3af/802.3at/802.3bt compliant
- One gigabit PoE input port (60 watts max)
- Four gigabit PoE output ports (30 watts max per port)
- Extends PoE signal for additional 100 meters
- No additional power supply required
- Automatically detects PoE and Non-PoE equipments
- Desktop or wall-mount installation
- Metal case, plug and play
Specifications
| Model | POE40 |
| No. of channels | 1(PoE IN) into 4(PoE OUT) |
| Pass Through Data Rates | 10/100/1000 Mbps half/full duplex |
| Power over Ethernet input | Pin Assignment and Polarity: Both 1/2 (-), 3/6 ( ) and 4/5 ( ), 7/8 (-) |
| Power over Ethernet Output |
Pin Assignment and Polarity: 1/2 ( ), 3/6 (-) Output Power: up to 12W for 4 PSE or 30W for 2 PSE |
| Indicators | LED indicators are located on the RJ45 connector
Power indicator: PoE enabled Powered success:Power Network indicator: Link/Act |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Network cables | Shielded category 5E (or higher) |
| Dimensions | 119mm x 85mm x 28mm |
| Mounting | Wall of shelf |
| Environment | Indoor |
| Environmental Conditions | Operating Ambient Temperature: 0 to 45℃
Operating Humidity: Maximum 90%, Non-condensing Storage Temperature:-40 to 70℃ Storage Humidity: Maximum 95%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (15.4W)
IEEE 802.3at (30W) IEEE802.3at 4Pairs(60W) |
