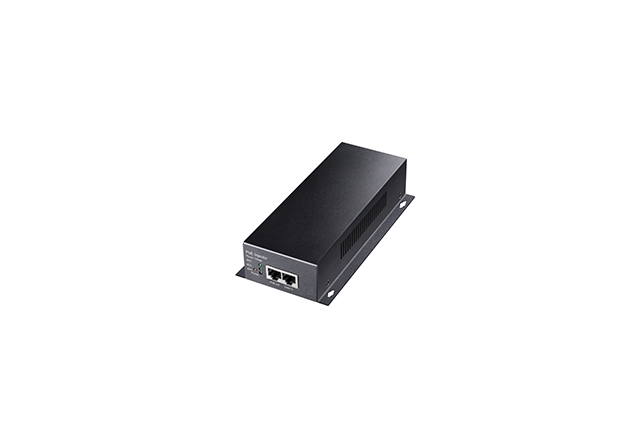

Model: POE350
90W Gigabit PoE Injector
Features:
- IEEE802.3af/at/bt compliant
- Up to 90 Watts PoE budget
- Ethernet Port: 10/100/1000Mbps
- Pin Assignment and Polarity:
- 1/2 (-), 3/6 ( ),4/5 ( ), 7/8 (-)
- Output Voltage: 52V DC 1.8A
- Wall-Mount Design
Specifications
| Model | POE350 |
| No. of channels | 1 |
| Pass Through Data Ratesi | 10/100/1000Mbps |
| Power over Ethernet Output |
Pin Assignment and Polarity: 1/2 (-), 3/6 ( ),4/5 ( ), 7/8 (-), Output Power Voltage: 56VDC User Port Power: 90W |

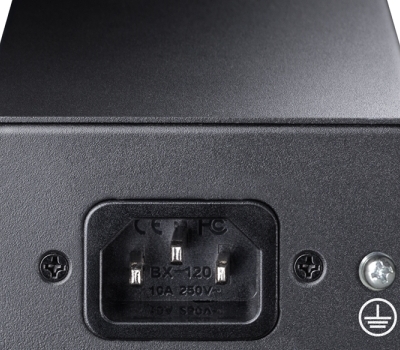

| Input Power Requirements | AC Input Voltage: 100 to 240 VAC |
| AC Input Current: 1A 100-240 VAC | |
| AC Frequency: 50 to 60 Hz | |
| Dimensions | 178.5mm x 80mm x 46mm |

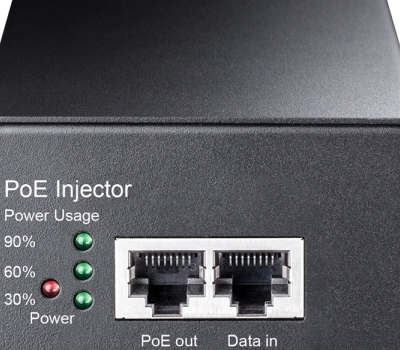

| Indicators | System Indicator: AC Power |
| User Indicator: Channel Power | |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Protection | Over current protection |
| Over load protection | |
| Over voltage protection | |
| Anti-interference protection | |
| Regulatory Compliance | IEEE 802.3af (15.4W) IEEE 802.3at (30W) IEEE802.3bt (90W) |
| Environmental Conditions | Operating Ambient Temperature:0 to 45℃ Operating Humidity:Maximum 80%, Non-condensing Storage Temperature:-20 to 70℃ Storage Humidity:Maximum 80%, Non-condensing |
