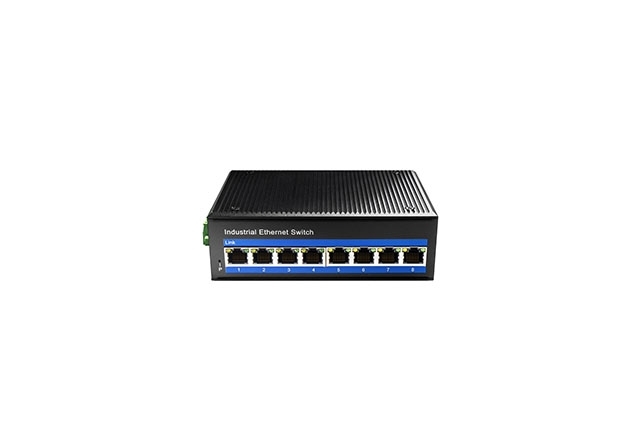

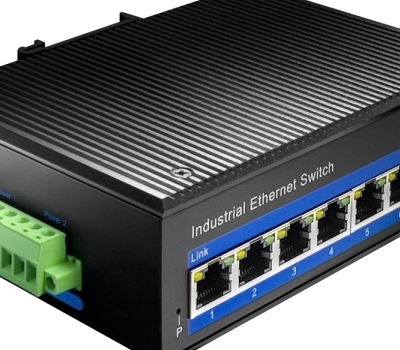

Model: IF1008P
8-Port 10/100M Industrial PoE Switch
Features:
- Port PoE, 802.3at/af support, 30W max

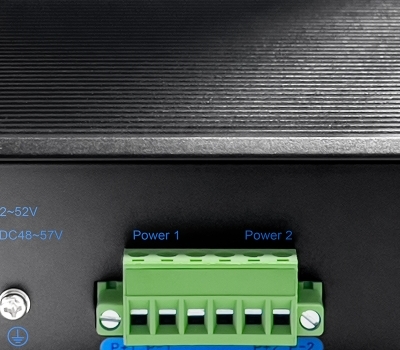

- 48V to 57V DC, redundant power input
- -40℃ to 85℃ operating temperature
- IP40 Aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Specifications
| Model | IF1008P |
| 10/100BASE-TX Port | 8 port RJ-45 auto-MDI / MDI-X |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports:1-8 port support PoE | |
| Power Output: Max. 15.4 watts (IEEE 802.3af); Max. 30 watts (IEEE 802.3at) | |
| PoE port Auto detect AF/AT devices | |
| Output Voltage: DC48V | |
| Power Pin Assignment:1/2 ;3/6- | |
| Power Type: End-span( Mid-span optional) | |
| Performance Specification | Bandwidth: 1.6Gbps Packet Buffer Memory:1Mbit Packet Forwarding Rate:1.2Mpps MAC Address Table: 2K |
| Installation | DIN rail |
| Maximum Frame Size | 9000bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP40 aluminum housing |
| LED Indicator | Power: Red Ethernet: Yellow POE: Green |
| Power Input | 48 to 57V DC ( Note: This product does not include a power adapter.) |
| Surge protection | ±4KV |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x |
| Network cables | 10BASE-T: Cat 3, 4, 5 UTP (≤100 meter) 100BASE-TX: Cat 5 or later UTP (≤10 meter) 1000BASE-TX: Cat 6 or later UTP (≤100 meter) |
| MTBF | >300,000 hours |
| Dimensions (W x D x H) | 143.7x103x47.7mm |
| Weight | Product Weight: 0.52KG Packing Weight: 0.62KG |
| Working Environment | Working temperature: -40～85℃ Storage temperature: -40～85℃ Relative Humidity: 5%~95 % (no condensation) |
